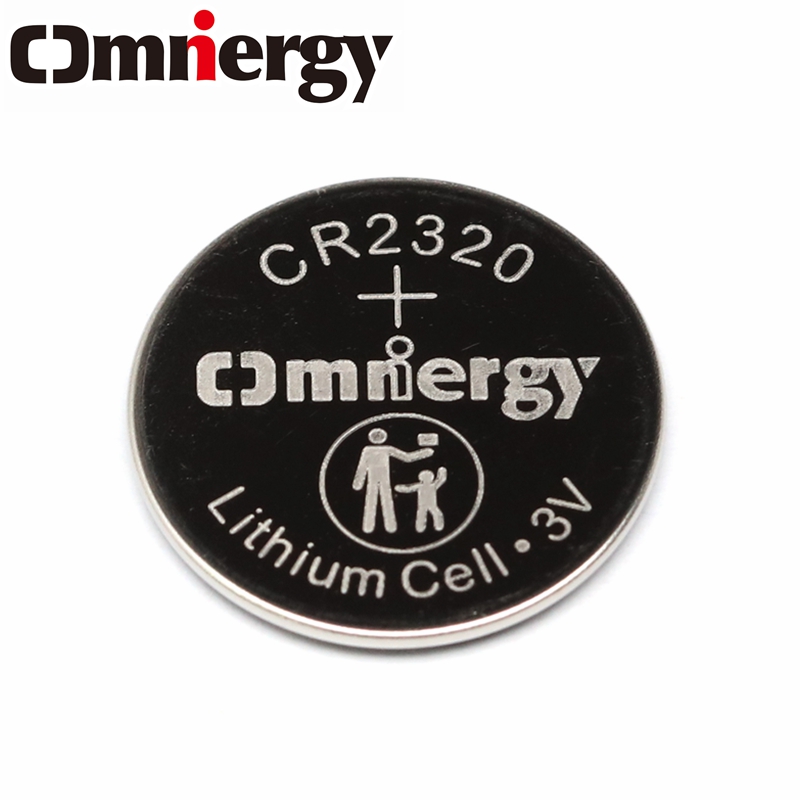

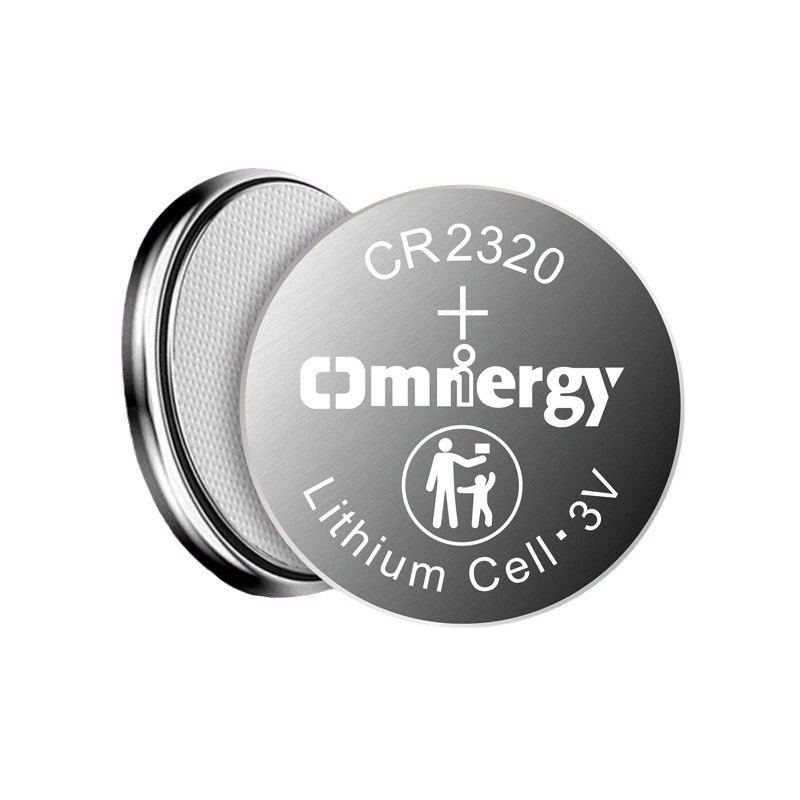

Pile bouton au lithium CR2320
- Omnergy
- Yichang
- 7 jours
- 750 millions par an
La pile bouton au lithium CR2320 offre d'excellentes performances et sa longue durée de vie la rend idéale pour une utilisation dans de nombreux appareils. Elle est couramment utilisée dans : les montres, les télécommandes, les appareils médicaux, les capteurs de fitness, les cartes mères d'ordinateurs, les calculatrices, les systèmes d'entrée sans clé, les éclairages LED et autres petits appareils électroniques.
Specifications
Nominal Voltage: 3V
Capacity: 130mAh
Nominal Current: 0.2mA
Max Continuous Current: 6mA
Max Pulse Current: 20mA
Size: φ23.0*2.0mm
Operating Temperature: -20~70 ℃
Type: lithium coin
Self-discharge rate: ≤2%
Size
Characteristics
Applications
More Products of CR Series Lithium-Manganese Button Cell
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Nominal Current (mA) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Weight (g) |
| CR920 | 3 | 20 | 0.1 | 1 | 5 | Φ9.5X2.0 | 0.55 |
| CR927 | 3 | 28 | 0.1 | 1 | 5 | Φ9.5X2.7 | 0.6 |
| CR1025 | 3 | 30 | 0.1 | 2 | 5 | Φ10.0X2.5 | 0.7 |
| CR1216 | 3 | 25 | 0.1 | 2 | 5 | Φ12.5X1.6 | 0.7 |
| CR1220 | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225 | 3 | 50 | 0.1 | 2 | 5 | Φ12.5X2.5 | 0.9 |
| CR1616 | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X16 | 1.2 |
| CR1620 | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632 | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2 |
| CR2016 | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2 |
| CR2020 | 3 | 120 | 0.1 | 5 | 15 | Φ20.0X2.0 | 2.2 |
| CR2025 | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032 | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2050 | 3 | 330 | 0.4 | 5 | 15 | Φ20.0X5.0 | 4.7 |
| CR2320 | 3 | 130 | 2 | 6 | 20 | Φ23.0X2.0 | 3 |
| CR2325 | 3 | 190 | 2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330 | 3 | 260 | 2 | 6 | 20 | Φ23.0X3.0 | 4 |
| CR2335 | 3 | 300 | 2 | 6 | 20 | Φ23.0X3.5 | 4.3 |
| CR2354 | 3 | 560 | 0.4 | 6 | 20 | Φ23.0X5.4 | 6.9 |
| CR2430 | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2440 | 3 | 480 | 0.4 | 7 | 25 | Φ24.5X4.0 | 5.4 |
| CR2450 | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477 | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832C | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11 |
Precautions
1.Do not put the battery into microwave over or drying machine.
2.Do not drop, apply excessive damage or deform the battery.
3.Do not mix the used battery together with the new battery or different type of batteries.
4.Do not store the battery in high temperature and high humidity location and where the battery is exposed to sunlight to avoid performance deterioration, swelling or leakage of the battery.
WARNING
(1) KEEP OUT OF REACH OF CHILDREN. Swallowing may lead to serious injury or death in as little as 2 hours due to chemical burns and potential perforation of the esophagus. Immediately see doctor. Keep in original package until ready to use. Dispose of used batteries immediately.
(2) Risk of injury due to fire, explosion or leakage. Do not disassemble, charge, crush or expose to fire or high temperatures.
Important: Lithium button cell batteries are not interchangeable. Both the diameter and thickness can vary based on the cell designation. While some device battery compartments may be sized in a way that different battery types can fit in the compartment, the capacities will vary by size. Lijia recommends that you use the cell designation specified by the manufacturer of your device or identified in the list provided above.
