Pile bouton Omnergy CR2025 3V 150mAh fiable, fonctionnant de -20°C à 70°C. Idéale pour le suivi automobile, les compteurs intelligents et l'électronique. Prix direct usine.

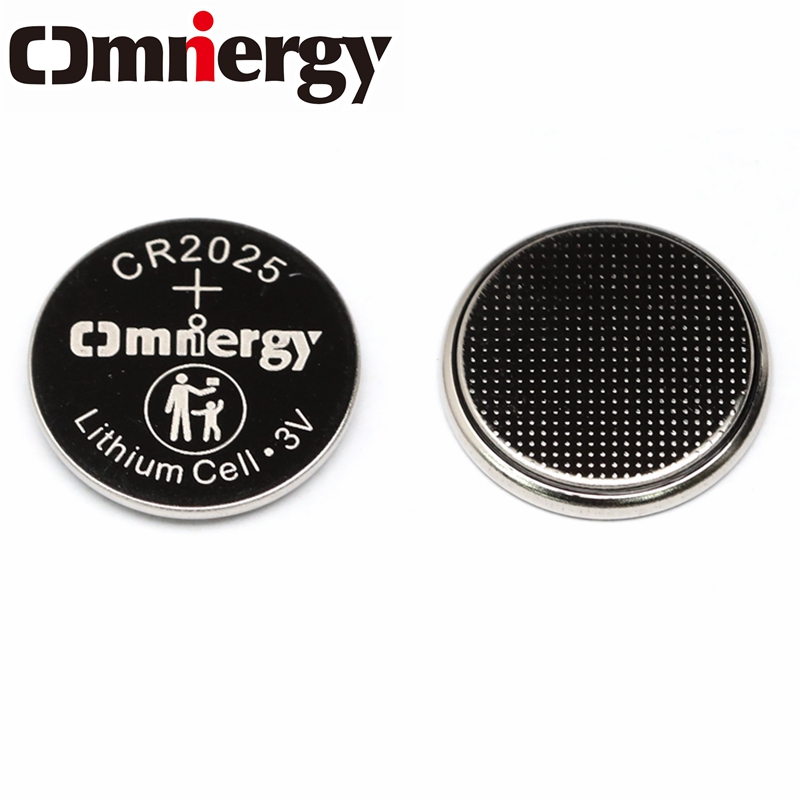

Pile bouton au lithium Omnergy CR2025 3V 150mAh
La borne d'alimentation haute densité pour ordinateurs portables, terminaux de point de vente, véhicules et compteurs intelligents

Dans l'architecture de l'Internet des objets (IoT) d'entreprise moderne, de la télématique automobile et de l'électronique intelligente à espace limité, trouver l'équilibre parfait entre encombrement physique et autonomie énergétique constitue un défi de conception permanent.Pile bouton Omnergy CR2025 3V 150mAh au dioxyde de manganèse (LiMnO2)est spécifiquement conçu pour combler cet écart.
Utilisation d'un diamètre standardisé de 20 mm avec une épaisseur verticale hautement optimisée deΦ20 × 2,5 mmCette cellule de format moyen sert de réservoir d'énergie haute densité. Elle offre une capacité impressionnante de 150 mAh, garantissant une stabilité de tension à long terme pour les chemins de données critiques, les boucles de protection de la mémoire et les matrices de synchronisation en temps réel, sans alourdir inutilement les équipements industriels compacts.
Dimensions de la pile bouton au lithium Omnergy CR2025 3V 150mAh

Caractéristiques de la pile bouton au lithium Omnergy CR2025 3V 150mAh

Caractéristiques techniques de la pile bouton au lithium Omnergy CR2025 3V 150mAh
| Paramètre technique | Spécification |
| Modèle de batterie | CR2025 |
| Composition chimique | Dioxyde de lithium-manganèse (LiMnO2) |
| Tension nominale | 3,0 V |
| Capacité nominale | 150 mAh |
| Dimensions | Diamètre : 20,0 mm | Hauteur : 2,5 mm (Φ20 × 2,5 mm) |
| Poids standard | 2,6 g |
| Température de fonctionnement | -20°C à +70°C |
| Taux d'autodécharge | <2% par an (à température ambiante) |
Série CR complète Piles boutons au lithium-manganèse
| Modèle | Tension nominale (V) | Capacité nominale (mAh) | Courant nominal (mA) | Courant continu maximal (mA) | Courant positif maximal (mA) | Dimension maximale (mm) | Poids (g) |
| CR920 | 3 | 20 | 0,1 | 1 | 5 | Φ9,5X2,0 | 0,55 |
| CR927 | 3 | 28 | 0,1 | 1 | 5 | Φ9,5X2,7 | 0,6 |
| CR1025 | 3 | 30 | 0,1 | 2 | 5 | Φ10,0X2,5 | 0,7 |
| CR1216 | 3 | 25 | 0,1 | 2 | 5 | Φ12,5X1,6 | 0,7 |
| CR1220 | 3 | 38 | 0,1 | 2 | 5 | Φ12,5X2,0 | 0,8 |
| CR1225 | 3 | 50 | 0,1 | 2 | 5 | Φ12,5X2,5 | 0,9 |
| CR1616 | 3 | 50 | 0,1 | 3 | 8 | Φ16.0X16 | 1.2 |
| CR1620 | 3 | 70 | 0,1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632 | 3 | 120 | 0,2 | 3 | 8 | Φ16,0X3,2 | 2 |
| CR2016 | 3 | 80 | 0,1 | 5 | 15 | Φ20,0X1,6 | 2 |
| CR2025 | 3 | 150 | 0,2 | 5 | 15 | Φ20,0X2,5 | 2.6 |
| CR2032 | 3 | 220 | 0,2 | 5 | 15 | Φ20,0X3,2 | 3.2 |
| CR2050 | 3 | 330 | 0,4 | 5 | 15 | Φ20.0X5.0 | 4.7 |
| CR2320 | 3 | 130 | 0,2 | 6 | 20 | Φ23.0X2.0 | 3 |
| CR2325 | 3 | 190 | 0,2 | 6 | 20 | Φ23,0X2,5 | 3.3 |
| CR2330 | 3 | 260 | 0,2 | 6 | 20 | Φ23.0X3.0 | 4 |
| CR2335 | 3 | 300 | 0.2 | 6 | 20 | Φ23.0X3.5 | 4.3 |
| CR2354 | 3 | 560 | 0.4 | 6 | 25 | Φ23.0X5.4 | 6.9 |
| CR2430 | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450 | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477 | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832 | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11 |
The Engineering Edge: Why Specify the Omnergy CR2025?
1. The Optimized Vertical Sweet Spot
At 2.5mm thickness, the CR2025 offers a 20% vertical profile reduction compared to standard 3.2mm coin cells, while still retaining a powerful 150mAh capacity payload. This allows hardware design engineers to shrink casing dimensions or allocate extra PCB layer clearance without compromising on field autonomy.
2. High-Pulse Capacity for Wireless Telemetry
Modern automotive electronics and smart utilities frequently transition from micro-ampere sleep cycles to sudden, high-drain data transmissions (RF, BLE, or Cellular bursts). The low internal resistance profile of our CR2025 ensures stable voltage holding during pulse loads, eliminating logic crashes and communication drops.
3. Fortified Environmental Resilience (-20°C to 70°C)
From unheated smart utility meters tracking parameters in sub-zero winter climates to automotive dash components baked under direct sunlight, our battery maintains steady chemical kinetics. The specialized organic electrolyte limits internal resistance spikes and entirely prevents cell swelling across its entire thermal operational threshold.
Core Application Ecosystems
Notebooks (NB) & Computing Architecture
As enterprise computing form factors trend toward ultra-thin, highly portable profiles, internal motherboard components must adapt. The Omnergy CR2025 delivers decades of reliable CMOS/RTC backup power, protecting crucial system configurations, secure BIOS code, and hardware timers during secondary power disconnections.
Commercial Fintech & Smart POS Terminals
Secure payment infrastructures process highly sensitive user details. Our CR2025 serves as the permanent anchor for active cryptographic anti-tamper security loops, ensuring that local memory arrays remain powered to wipe encryption keys instantly if unauthorized physical manipulation is detected.
Automotive Electronics
Modern connected vehicles depend on unyielding component lifecycles.
Passive Keyless Entry (PKE): Providing long-range RF transmission power for multi-year vehicle key fob lifespans.
In-Cabin Telematics: Serving as the memory backup for fleet management hardware, electronic toll collections, and dashboard tracking devices.
Smart Metering & Instrumentation
Utility Infrastructure: Powering the timekeeping clocks and data storage logs inside smart gas, water, and heat meters deployed in remote, unserviced environments.
Industrial Sensors: Maintaining calibration profiles and real-time logs in portable monitoring devices and handheld environmental testing tools.
Premium B2B Supply Chain & Customization Capabilities
Global Certifications & Zero-Leakage Architecture: Formulated and assembled under a rigorous ISO9001 and ISO14001 framework, our CR2025 cells feature an ultra-durable casing and a specialized hermetic crimp seal. Carrying full compliance credentials including UL1642, CE, RoHS, REACH, and UN38.3, they are fully authorized for global cargo logistics and immediate high-speed factory assembly lines.
